Professional Manufacture Widely Used Best Price

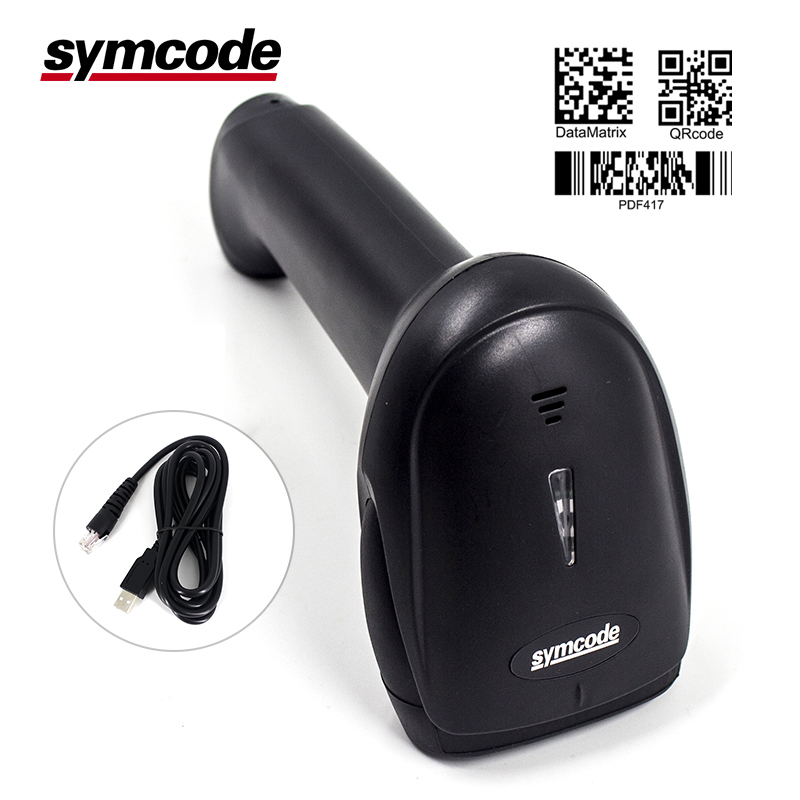

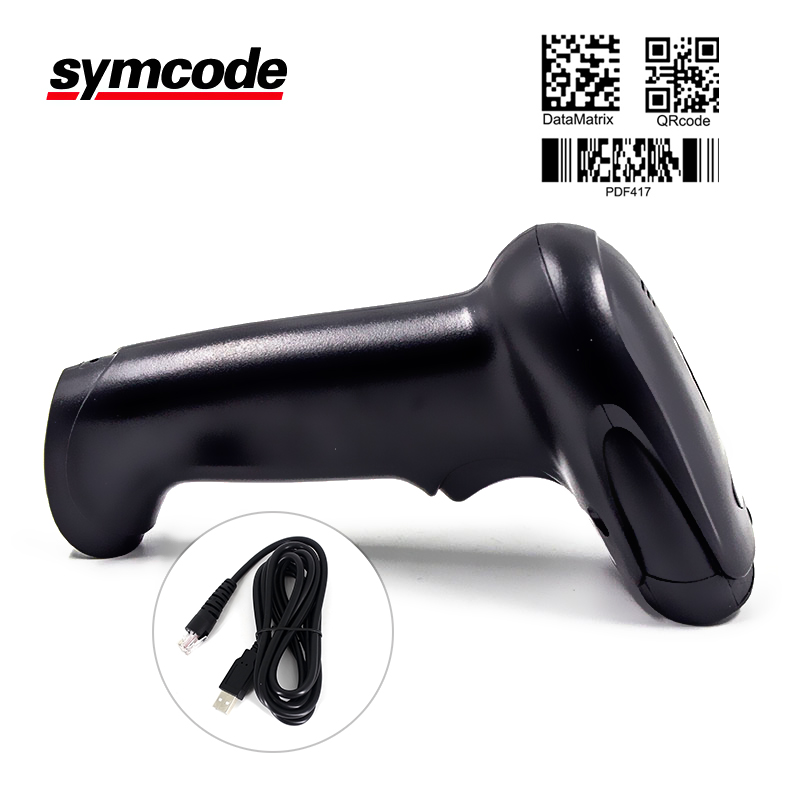

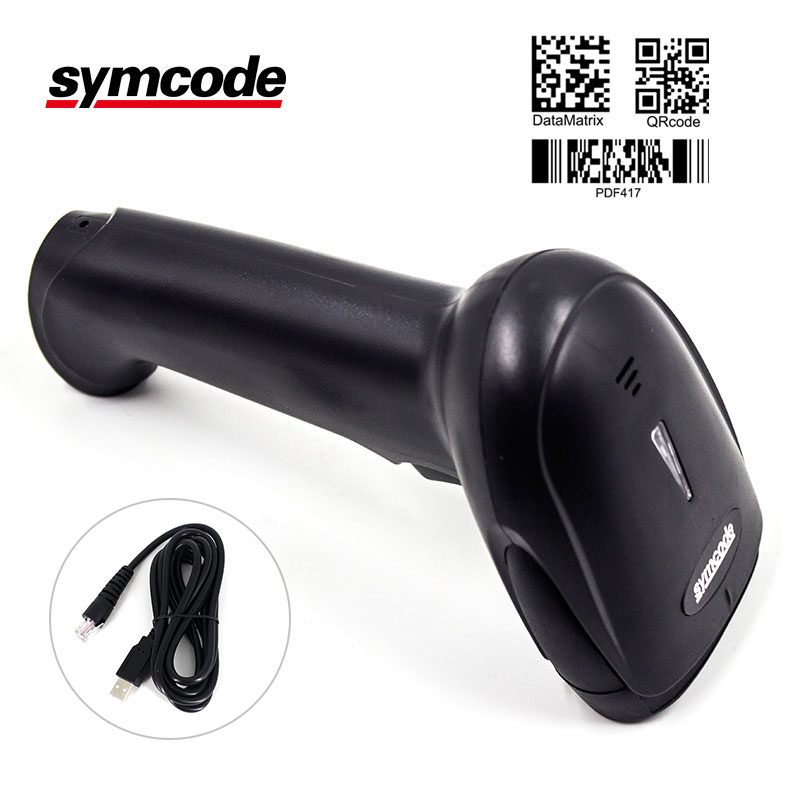

2D Barcode Scanner
The integrated weighted base enables presentation-style scanning, and the scanner can be handheld when working with bulky items.
Two colored LEDs and an audible signal indicate the status of a scan. Optional sleep mode conserves power when not in use, waking the scanner when a barcode is placed within range of its sensor.
FAQ:
A1:What kind of barcode MJ-6706 can scan ?
Q1:There are barcodes MJ-6706 can scan as below:
1D : EAN/UPC, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, Postal Codes, GS1 databar .
2D : Data Matrix, PDF417, Micro PDF 417, Maxicode, QR, Aztec, EAN, UCC composite .
A2:What's the MJ-6706 memory ?
Q2:MJ-6706 barcode scanner's memory is 512KB .
A3:How much data can MJ-6706 saved ?
Q3:MJ-6706 can store about 131,000 pcs EAN-13 barcodes .
A4:What's the barcode scanner's min/max scan distance ?
Q4:MJ-6706 barcode scanner can scan from 8cm-23.5cm .
| Model: | CMOS |
| Resolution: | 752*480 |
| Precision: | ≥ 3 mil |
| Depth of scan field: | 40mm~300mm |
| Print contrast: | ≥ 30 % |
| Roll / Pitch / Yaw: | 360°, ±60°, ±60° |
| Ambient Light Immunity: | 0~100,000 LUX |
| Decode capability: | 1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
2D:PDF417 / QR code / Data Matrix / Aztec, Maxicode |
| Environmental: | CE and Rohs |
| Sealing: | IP54 |
| Drop Specifications: | 1.8m drops to concrete |
| Interface: | USB / KB |
| Dimensions: | L 19.4cm*W 7.0cm*H 8.9cm |
| Weight: | 180g |
