Brand Name : symcode
Model Number : MJ-S320
Certification : CE / RoHS / FCC
Place of Origin : China
MOQ : 1pcs
Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability : 15,000pcs per month
Delivery Time : Sample order:1-3 days / Bulk order:7-15days
Packaging Details : Standard package
Printing method : Direct thermal
Type : 80mm bluetooh thermal receipt printer
Resolution : 203dpi(8dots/mm)
Printing paper : 79.5±0.5mm
Interface : Serial,Bluetooth
Battery : 7.4v DV/2000mA (Re-chargeable lithium battery)
Barcode type : 1D&2D barcodes
Charging Mode : external 9V/1.5-2A
Print Head : Reliability ( Thermal Head 37 X 150000000)
Temperature : Working: -10 to 45 Degrees
Certificates : CE & FCC CCC ROHS ISO9001:2008
Other Features : Paper detection, Power detection, Manual shut down, 1D&QR Code Print (42 characters each line), Multi-functional
Mini Wireless Bluetooth 80mm Thermal Receipt Printer Compatible
with ESC / POS Print Commands Set
Features:
Applications
The mobile police system
The tobacco distribution system
The utility meter reading system
The mobile office / mobile logistics systems
The portable instrumentation
The testing equipment, ancillary equipment.
Low operating costs (no ribbons, ink cartridges)
Specifications | ||
Interfaces | Standard RS232 / USB / Bluetooth 2.0(4.0)/ SPP agreement ( Optional) | |
Print Comand | ESC/POS/STAR | |
Print Method | Thermal Line Printing | |
Pirnt Speed | 90mm/sec | |
No. of Total Dots | 576 dots/Line | |
Print Width | 72mm | |
Character Size | 1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) | |
Print Font | 12 x 24; 24x 24 | |
Column Capacity | 32 column / 16 column | |
Character Set | Alphanumeric /Chinese Kanji | |
Data Buffer | UP to 20K bytes | |
Compatible OS | Window Systems ; Android & IOS Operate Systems | |
Paper | ||
Type | Roll Paper | |
Width | 80±1mm | |
Roll Diameter | 83mm | |
Paper Thickness | 0.06-0.08mm | |
Electrical | ||
Battery | 7.4v DV/2000mA (Re-chargeable lithium battery) | |
Charging Mode | external 9V/1.5-2A | |
Print Head | Reliability ( Thermal Head 37 X 150000000) | |
Print Reliability | 100km | |
Physical | ||
Dimension | 10.4*10*4.6cm | |
Unit Weight | 520g (including accessories: lithium-ion batteries, cable, test paper); Net weight: 276g | |
Color | Black | |
CTN Dimension | 47.5*42.8*34.8cm | |
Gross Weight | 22kgs |
![]() |

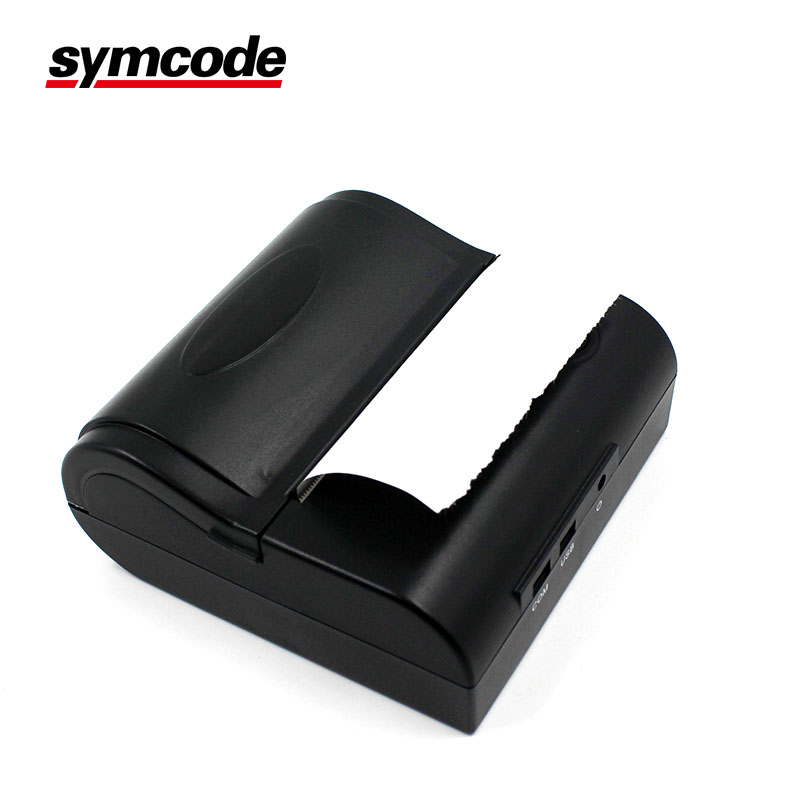

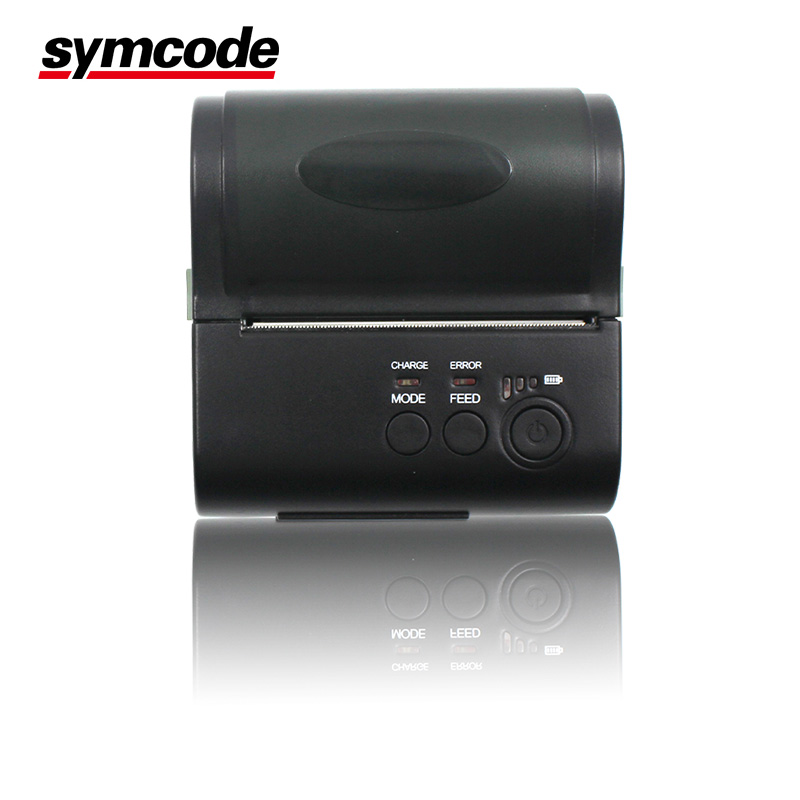

Mini Bluetooth Wireless Printer / 80mm POS Printer For Mobile Police System Images |
